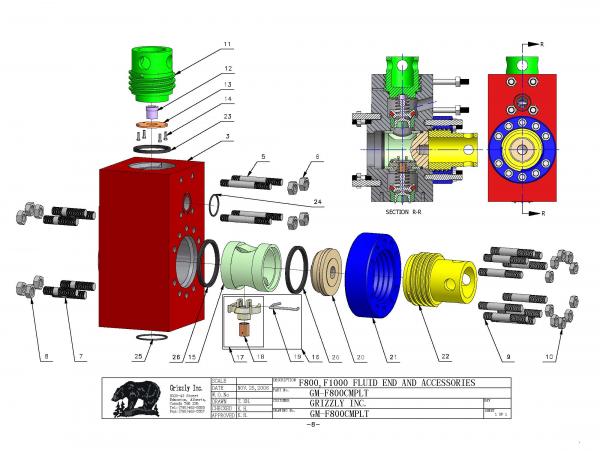

PZ-7/8/9 Fuild End Expendable

PZ-7/8/9 Fluid End Expendables

Part Number	Image	Description

Item 13 GM-2011862		GASKET, Valve Cover 6/pump
Item 14 GM-2011861		RING-RETAINING, Valve Cover Gasket 6/pump
Item 15 GM-2007674		BUSHING, Suction & Discharge Valve Cover 6/pump
Item 16 GM-2011860		COVER-VALVE 6/pump
Item 17 GM-2011699		RING-VALVE COVER 6/pump
Item 18 GM-2011857		LOCK-COVER, Valve, MODIFIED 6/pump
Item 19 GM-2011706		VALVE GUIDE ASSEMBLY, Incl. Item 20 to 24 3/pump
Description		Description
Description		Description
Item 1 GM-PZ-Z7CMPLT		FLUID CYLINDER completed 3/pump
Item 2 GM-205PZL029D		FLUID CYLINDER studded, incl. Item 3 to 4 3/pump
Item 3 GM-205PZL029D-M		FLUID CYLINDER, MODIFIED 3/pump
Item 4 GM-PZ7STUDSET		STUD and NUT set 3/pump
Item 5 GM-79L188		STUD, Cylinder to Frame & Liner Clamp 24/pump
Item 6 GM-50B36		NUT, Cylinder to Frame & Liner Stud 48/pump
Item 7 GM-79L73		STUD, Cylinder to Frame 12/pump
Item 8 GM-50AQ30		NUT, Cylinder to frame Stud 12/pump
Item 9 GM-79AL6		STUD, Valve Cover to Cylinder 48/pump
Item 10 GM-50B34		NUT, Valve Cover Ring to Cylinder Stud 48/pump
Item 11 GM-202PZL110		STUD, Cylinder to Discharge Manifold 12/pump
Item 12 GM-50B34		NUT, Cylinder to Discharge Manifold Stud 12/pump
